120R-40BQ3

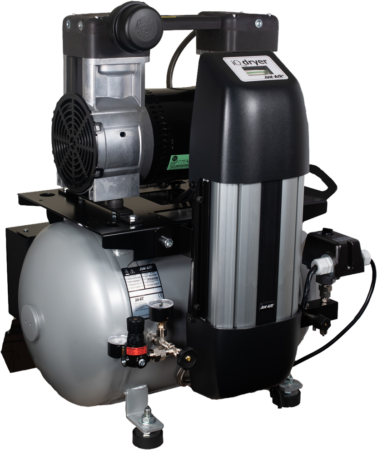

JUN-AIR Silent, Oilless Rotary Piston Compressor Basic Tank System, c/w Absorption Dryer:

MODEL :  120R-40BQ3
Displacement :  198 / 226 lpm   |   7 / 8 cfm
Max. pressure :  8 bar   |   116 psi
Tank size :  40 litres
Noise level :  79 dB(A)/1m

Designed for flexibility, quiet operation, and optimum performance, our JUN-AIR tank systems easily handle large tasks and are ideal for virtually any application. Available in basic and cabinet styles, these systems Incorporating the latest Gast rocking piston compressor technology, offering best-in-class reliability, quality, and performance. These convenient plug-and-play systems are compact in size and available in numerous tank sizes and mounting options allowing customization to suit specific applications.

Systems powered by our 120R air compressors offer higher-pressure performance at significantly lower sound levels. Engineered for maximum airflow with lower amp draw, the 120R delivers unmatched power while using less space and energy. It features corrosion-resistant materials and operates oil-free, ensuring reliable performance and efficiently delivering clean, contaminant-free pressurized air at a wide range of pressures and airflow rates.

The 120R tank systems are perfect for numerous applications in tighter spaces requiring steady and precise air flow where sound level and long life are key such as healthcare, food and beverage, lab equipment, and sprinkler systems, where they deliver clean air, maintain sterile environments, and help maintain product quality and freshness.



Highlights
  • Higher-Pressure Performance: Patented crossover chamber design regulates airflow to dampen sound and optimize performance
  • Basic Systems: Uncovered compressor and tank (sizes from 4 to 90 liters) with filters, regulators, and automatic drains
  • Cabinet Systems: Fully enclosed compressor and tank (sizes from 4 to 40 liters), reducing sound by 15%-20%. Includes temperature-controlled fans, filters, regulators, and gauges, and optional dryer systems
  • High Pressure at Lower Amps: Unmatched power in a smaller footprint
  • Capabilities: 2 to 4 HP, air flows up to 12 cfm, pressure up to 125 psi

SPECIFICATIONS
MODEL120R-40BQ3
P/N1203560
VoltageV230
FrequencyHz50 / 60
MotorHP2
kW1.49
Max. currentA8 / 10
Displacementlpm198 / 226
cfm7 / 8
Max. pressurebar8
psi116
Tank sizelitres40
Noise leveldB(A)/1m79
Weightkg51.71
lbs114
Diemensionsinch22.29 x 26.32 x 27.53
(L x W x H)cm56.6 x 66.9 x 70
