2x106R-40B

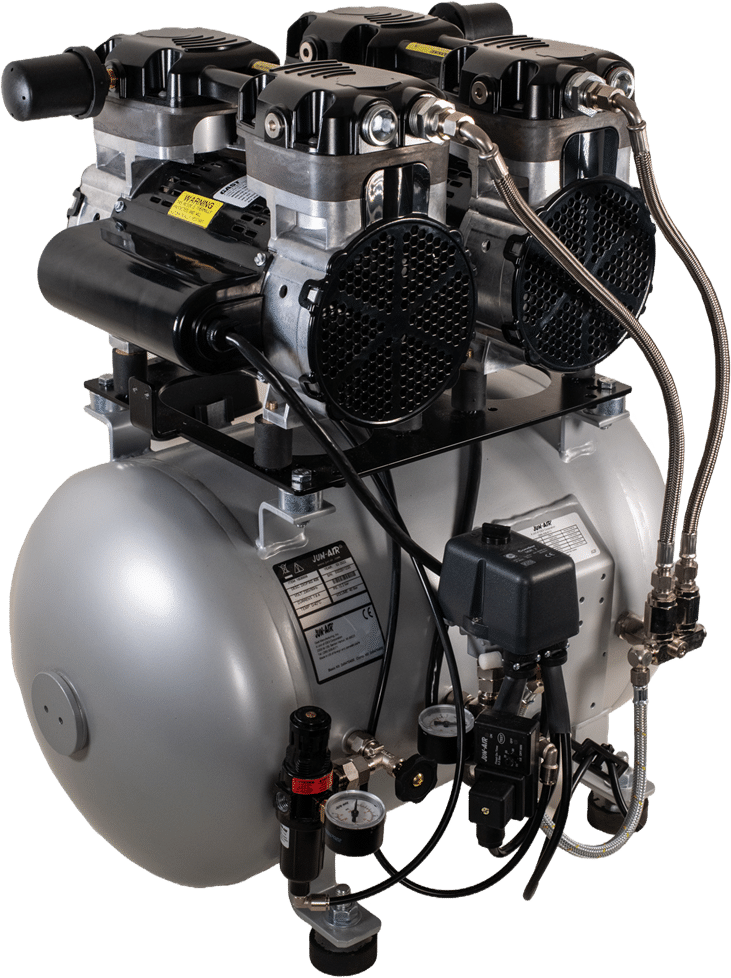

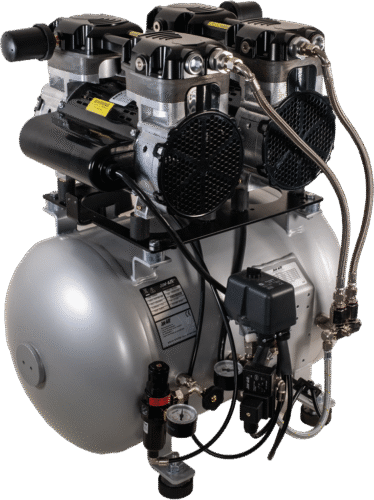

JUN-AIR Silent, Oilless Rotary Piston Compressor Basic Tank System:
| MODEL : 2x106R-40B |
| Displacement : 180 / 200 lpm | 6.3 / 7.1 cfm |
| Max. pressure : 8 bar | 116 psi |
| Tank size : 40 litres |
| Noise level : 71 dB(A)/1m |
Engineering Excellence, Delivered by Industry Leaders.
- Field-Tested. Industry-Validated.
- Continuous Innovation. Consistent Excellence.
- Maximum Uptime. Minimum Lifecycle Cost.
Designed for flexibility, quiet operation, and optimum performance, our JUN-AIR tank systems easily handle large tasks and are ideal for virtually any application. Available in basic and cabinet styles, these systems incorporate the latest Gast rocking piston compressor technology, offering best-in-class reliability, quality, and performance. These convenient plug-and-play systems are compact in size and available in numerous tank sizes and mounting options allowing customization to suit specific applications.
Systems powered by our compact 106R air compressors offer higher-pressure performance. Engineered to run at lower exhaust temperatures, the 106R has an extended lifespan and features corrosion-resistant materials and oil-free operation. It provides reliable performance, efficiently delivering clean, contaminant-free pressurized air at various pressures and airflow rates.
The 106R tank systems are perfect for applications requiring steady and precise air flow such as healthcare, food and beverage, lab equipment, and sprinkler systems, where they deliver clean air, maintain sterile environments, and help maintain product quality and freshness.
Highlights
- Higher-Pressure Performance: Patented crossover chamber design regulates airflow to dampen sound and optimize performance
- Cool Operating Temperature: Reduces the need for fans, cooling coils, or more expensive heat-resistant materials
- Basic Systems: Uncovered compressor and tank (sizes from 4 to 90 liters) with filters, regulators, and automatic drains
- Cabinet Systems: Fully enclosed compressor and tank (sizes from 4 to 40 liters), reducing sound by 15%-20%. Includes temperature-controlled fans, filters, regulators, and gauges, and optional dryer system
- Capabilities: 3/4 to 1 ½ HP, air flows up to 7.1 cfm, pressure up to 116 psi
SPECIFICATIONS
| MODEL | 2x106R-40B | ||
|---|---|---|---|
| P/N | 1068906 | 1068904 | |
| Voltage | V | 230 | 120 |
| Frequency | Hz | 50 / 60 | 60 |
| Motor | HP | 1.5 | 1.5 |
| kW | 1.1 | 1.1 | |
| Max. current | A | 6.3 / 7.1 | 14.8 |
| Displacement | lpm | 180 / 200 | 200 |
| cfm | 6.3 / 7.1 | 7.1 | |
| Max. pressure | bar | 8 | 8 |
| psi | 116 | 116 | |
| Tank size | litres | 40 | 40 |
| Noise level | dB(A)/1m | 71 | 70 |
| Weight | kg | 51 | 52 |
| lbs | 113 | 115 | |
| Diemensions | inch | 21.85 x 20.78 x 24.84 | 21.85 x 20.78 x 24.84 |
| L x W x H | cm | 55.5 x 52.8 x 63.1 | 55.5 x 52.8 x 63.1 |
| Duty cycle | 100% | 100% | |
